Energy Efficiency Stable Semi Automatic Welding For Circumferential Seam

Name: Energy Efficiency Stable Semi Automatic Welding For Circumferential Seam
Brand: WINCOO
Price: 6 USD

China Energy Efficiency Stable Semi Automatic Welding For Circumferential Seam factory

Place of Origin : Jiangsu, China

Brand Name : WINCOO

Price : $6,500.00/sets 1-99 sets

Applicable Industries : Manufacturing Plant, Construction works

Showroom Location : None

Video outgoing-inspection : Provided

Machinery Test Report : Provided

Marketing Type : New Product 2020

Warranty of core components : 1 Year

Core Components : Motor

Condition : New

Forming Time : Standard

Welding Mode : Tig/Mig/MAG/SAW(optional)

Welding Diameter : 80mm

Dimensions : 245*520*290mm

Use : Tank Seam Welding

Voltage : 220V

Warranty : 1 Year

Key Selling Points : Automatic

Weight (KG) : 10.4 KG

Power (kW) : 4

Product name : Tank welding machine

Application : Tank construction

Working mode : Auto Seam Welder

Welding Method : MAG Welding

COLOR : CUSTOMER

Welding Material : Carbon Steel Stainless Steel Aluminum

Contact Now

Energy Efficiency Stable Semi Automatic Welding For Circumferential Seam

Wincoo Engineering Co., Ltd (WINCOO) is engaged in bringing the most suitable solutions/equipment for client, fabricators, EPC/C companies on pipe fabrication, tank construction, pipeline construction, industrial production lines, clean energy project and other industrial field.

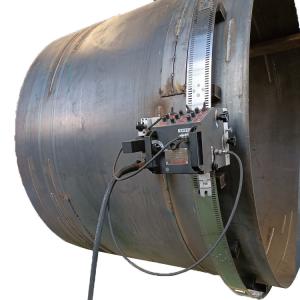

A simple, inexpensive and easy to use straight or flexible rail welder for tank welding.

Reference Product Parameter
Items	Parameter			Notes
Items		Straight rail type	Soft rail type	Notes
External power source	AC 220V 50/60 Hz			Three-hole
Working power source	AC 20V			Use of each driver
Dimensions	*245520280cm*	*245520290cm*	*Lengthwidthheight*
Weight	8.6 kg	10.4 kg	Main host
Track type	Linear motion guide	Self-aligning flexible slide rails
Drive mode	Gear drive	Sprocket drive
Welding speed	0~1650mm/min			Fastest
The thinnest adsorption plate thickness	3mm			Magnetically attractive metal
Welding gun adjustment range	65mm			Inching for up and down
		80mm			Inching for left and right
		+ -60°			Swinging angle
		+ -25°			Marching Angle
		Stop left, stop right			Swinging form
Operating function	0-100mm/min			Swinging speed
		0-2.5s			Left and right residence time
		+-14mm			Swinging width
		+-5mm			Center for compensation

Company Profile

We have ability of providing workable solutions to support clients to be awarded with shorter project execution time, fewer man-hour cost and higher efficiency construction/fabrication method and better quality during phase of project bidding.

Based client’s facility/site space availability, we are able to study/design and present matched configurations on project schedule, quality, cost and productivity to guarantee production pace is accordance with project requirement.

To support project execution, we are always ready to work as fireman to give prompt supply on project materials from different consumables, tools, equipment/machines to special merchandise. With flexibility, we are also glad to perform as procurement agent in China to seek required supply resources.
